Selection Guide

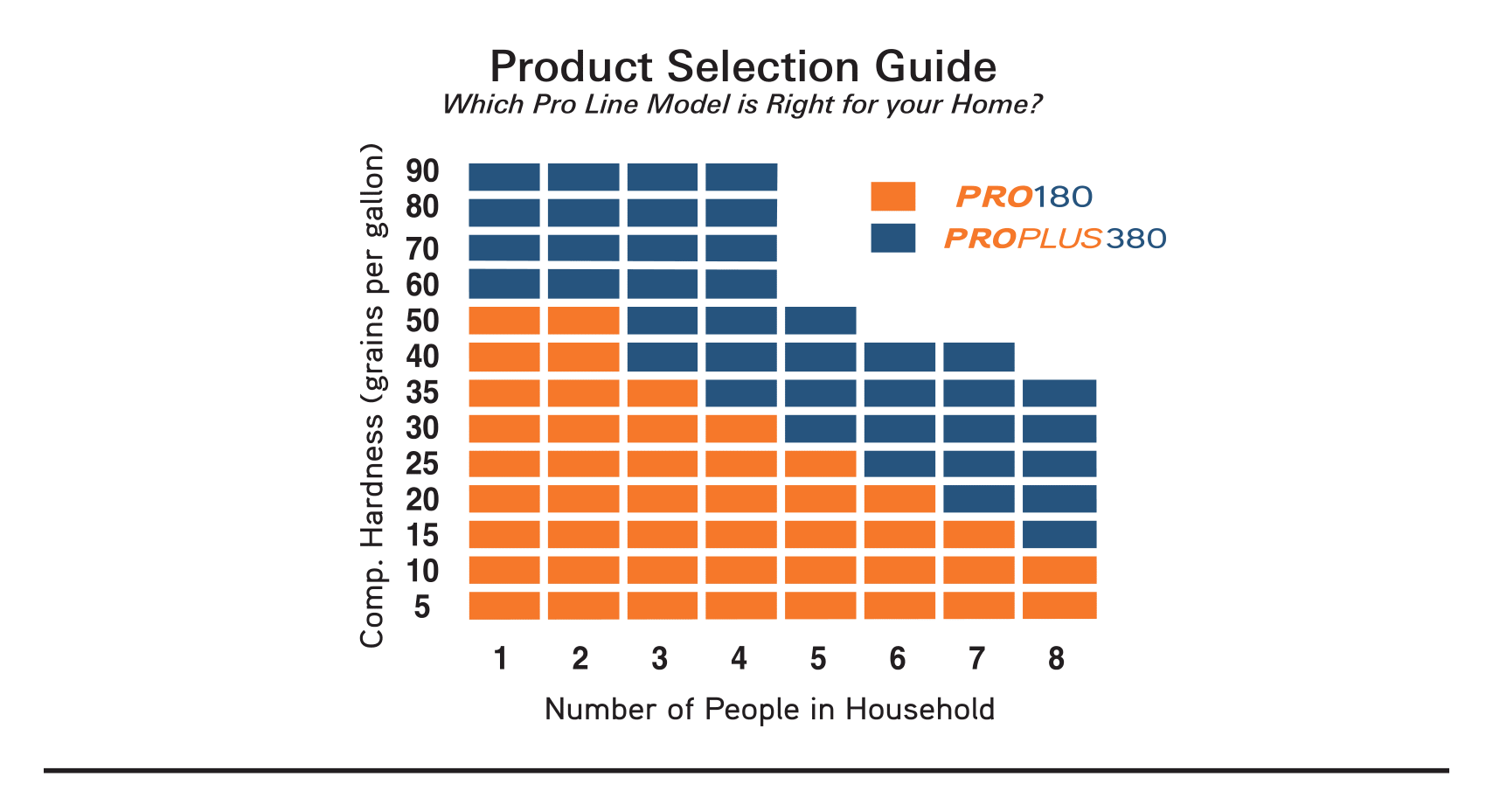

Product selection image for hague waterboss

Specifications

PRO 180

PROPLUS 380

Max. compensated hardness: 70 grains per gallon (gpg) 100 grains per gallon (gpg)
Maximum hardness removed: 20,000 grains 40,000 grains
Maximum ferrous iron reduction: 10 ppm 10 ppm
Maximum pH (standard units): 7 7
Salt used per regeneration cycle: 1 to 12 lbs. variable* 1 to 15 lbs. variable*
Length of regeneration cycle: 20 minutes @ (2.5 lbs.) 26 minutes @ (2.5 lbs.)
Water used per regeneration: 15 gallons @ (2.5 lbs.) 18 gallons @ (2.5 lbs.)
Plumbing connections: 3/4" or 1" NPT 3/4" or 1" NPT
Valve size: 1" 1"
Salt storage capacity: 95 lbs. 150 lbs.
Electrical requirements: 110/120 VAC, 12V 50/60 cycle 110/120 VAC, 12V 50/60 cycle
Max. water temperature (F): 120° 120°
Water pressure (min - max psi): 20 - 120 20 - 120
Footprint (WxD): 14 3/4" x 18 1/4" 16 1/4" x 20"
Height: 25 1/2" 33 1/2"
Shipping weight: 85 lbs. 135 lbs.

Operational maintenance and replacement requirements are essential for the product to perform to specifications.
* Dependent on water hardness level and the number of people living in the home.
